Photovoltaic applications

There are two categories of high voltage DC/DC converters in this product category. The first category (with an output of up to 36 W) is primarily intended to supply diagnostic equipment in Combiner Boxes of large photovoltaic power plants. These inverters convert high DC voltage from the PV string (up to 1500 V DC) to a safe supply voltage of 24 V (12 V) and are manufactured in the power series 10 W, 15 W and 36 W. The second category (with a power of 100 W) is designed to supply electronic devices directly from the traction line of trams and trolleybuses (up to 1500 V DC). The list of available inverters is given in the table below.

Power supplies for fotovoltaic applications

TypePower rangeInput voltageOutput voltageOutput currentType numberDatasheet
JS-20-240/DIN_BUF20 W230 V24 V0,8 A20209503Download
JS-30-240/DIN_BUF30 W230 V24 V1,25 A20309568Download
SS-10-240/DIN10 W300-1000 V DC24 V0,4 A30109503Download
SS-10-240/DIN_1K510 W300-1500 V DC24 V0,4 A30109504Download
SS-15-240/DIN_1K515 W300-1500 V DC24 V0,625 A30159023Download
SS-31-240/DIN_4kV_EN31 W350-1000 V DC24 V1,2 A30319002Download
SS-31-120/DIN_4kV31 W350-1000 V DC12 V2,4 A30319004Download
SS-36-120/DIN_1K536 W300-1500 V DC12 V2,5 A30369502Download
SS-36-240/DIN_1K536 W300-1500 V DC24 V1,5 A30369501Download

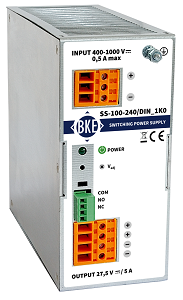

SS-100-240/DIN_1K5100 W400-1500 V DC24 V5 A31009503Download

Specific certificates and norms

MicroUPS type JS-20-240/DIN_BUF and JS-30-240/DIN_BUF meet the conditions of FRT (Fault-ride-through) in the VDE-AR-N 4105 standard for power plant installations in low-voltage networks.

Customized solution

Do you need to make an individual product exactly according to your ideas?
We are experts in custom work.
